Press this machine's (Paper) key and hold it down for 3 seconds to print a partial list of network settings. This allows you to check IPv4 settings, the MAC address, and wired LAN settings. The setting list is formatted to print on A4 size paper. Before printing, load A4 size paper in the multi-purpose tray or manual feed slot. Loading Paper in the Multi-Purpose Tray  Loading Paper in the Manual Feed Slot

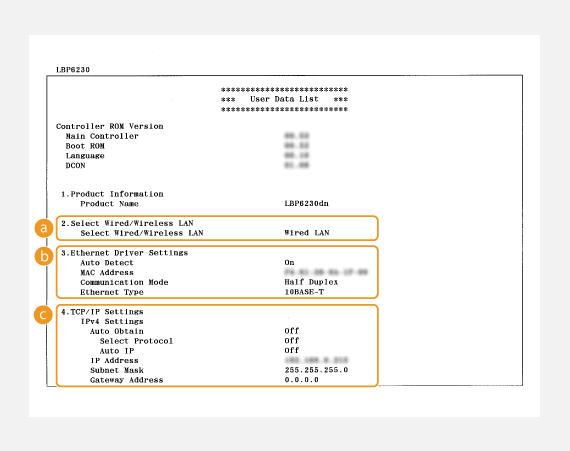

Output example:

Select Wired/Wireless LAN

Displays whether the connection is by wired LAN or wireless LAN.

This machine does not support wireless LAN.

Ethernet Driver Settings

Displays the wired LAN (Ethernet) settings and MAC address.

Auto Detect

Displays whether the setting to automatically detect the communication mode and Ethernet type is enabled or disabled.

MAC Address

Displays the MAC address on the wired LAN.

Communication Mode

Displays the communication mode (Half Duplex/Full Duplex).

Ethernet Type

Displays the Ethernet type (10BASE-T/100BASE-TX) setting.

TCP/IP Settings IPv4 Settings

Lists IPv4 settings.

Auto Obtain

Displays whether the IP address is assigned automatically by a protocol such as DHCP. "On" is displayed if automatic addressing is enabled.

Select Protocol

Displays the protocol used to assign the IP address automatically.

Auto IP

Displays whether Auto IP is enabled or disabled.

IP Address

Displays the IP address.

Subnet Mask

Displays the subnet mask.

Gateway Address

Displays the gateway address.

The IP address is not correctly configured if it is displayed as "0.0.0.0".

Connecting the machine to multiple switching hubs or bridges for redundancy may
result in a connection failure even when the IP address is correctly configured.
This problem can be solved by setting a certain interval before the machine starts
communicating. Setting a Wait Time for Connecting to a Network

Note that you cannot check IPv6 settings and some other network settings on this setting list. If you want to check all network settings, print them by selecting [Network Status Print] in the Printer Status Window. Printing Setting Lists
